4DepthTM Stereo Attachment For Stereoscopic Stills and Video
As Seen at ISU 2023 and 3D-Con 2023
Works on Full Frame Mirrorless Digital Cameras
Introducing the pinnacle of stereoscopic technology available today, meticulously crafted to seamlessly integrate with your current full frame mirrorless camera setup (camera not included). Engineered to surpass the most stringent benchmarks in both durability and performance, our attachment guarantees years of unwavering, dependable service.

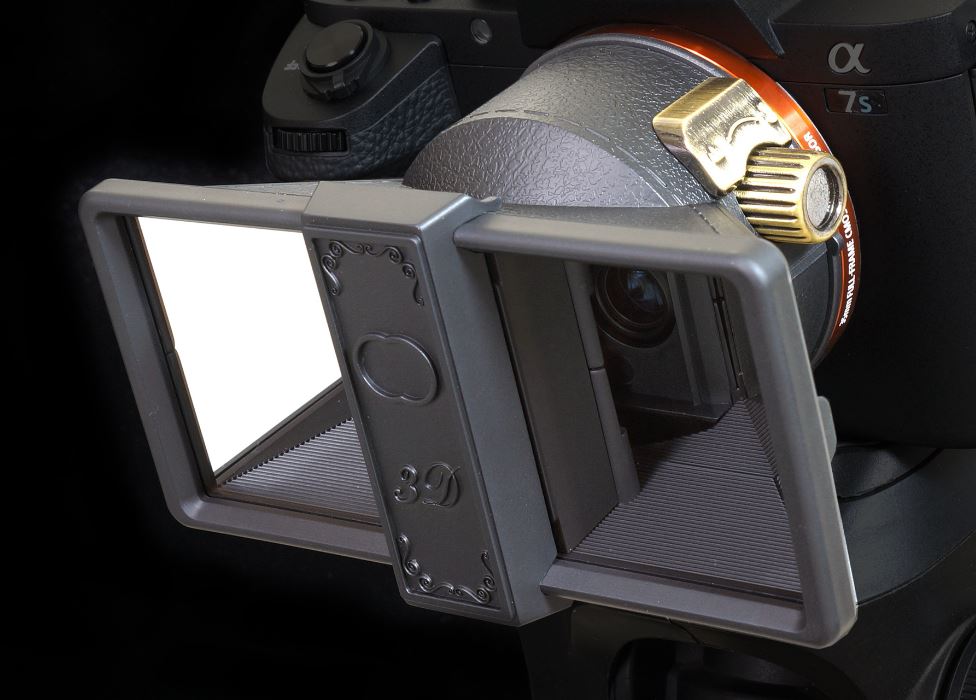

Our 3D lens is mounted on the popular full-frame mirrorless camera. It contains two lenses facing the left and right halves of the full-frame sensor, which captures both halves of the image simultaneously. This makes it both synchronized and simple, to the point where it's as easy as shooting 2D footage. The resulting footage is immediately in standard 3D file format, with none of the complications or laborious post-production work associated with shooting 3D. This also makes it easy to broadcast live 3D images. Like true attachments the image is transposed, which can be adjusted in post production to anaglyph, parallel or any other format. Later the video can be edited into an HD format if needed for a more horizontal aspect ratio.
Our stereo lens is indeed considered top-of-the-line 3D photographic equipment. Its advanced features include the ability to capture 8K video and 61 million pixels, along with the availability of top-tier 3D monitors and viewfinders. These capabilities surpass those of previous 3D devices that often cost hundreds of thousands or even millions of dollars. With our cost-effective stereo lens and reflective VR glasses, you can achieve all of these high-quality results at an affordable price.
The link below shows some edited video footage using the lens. Please note that we have edited it only to change from native R/L format to left right.
Splitter Video
Below is the video directly from the camera and also some stills. All of these have been compressed for internet viewing.

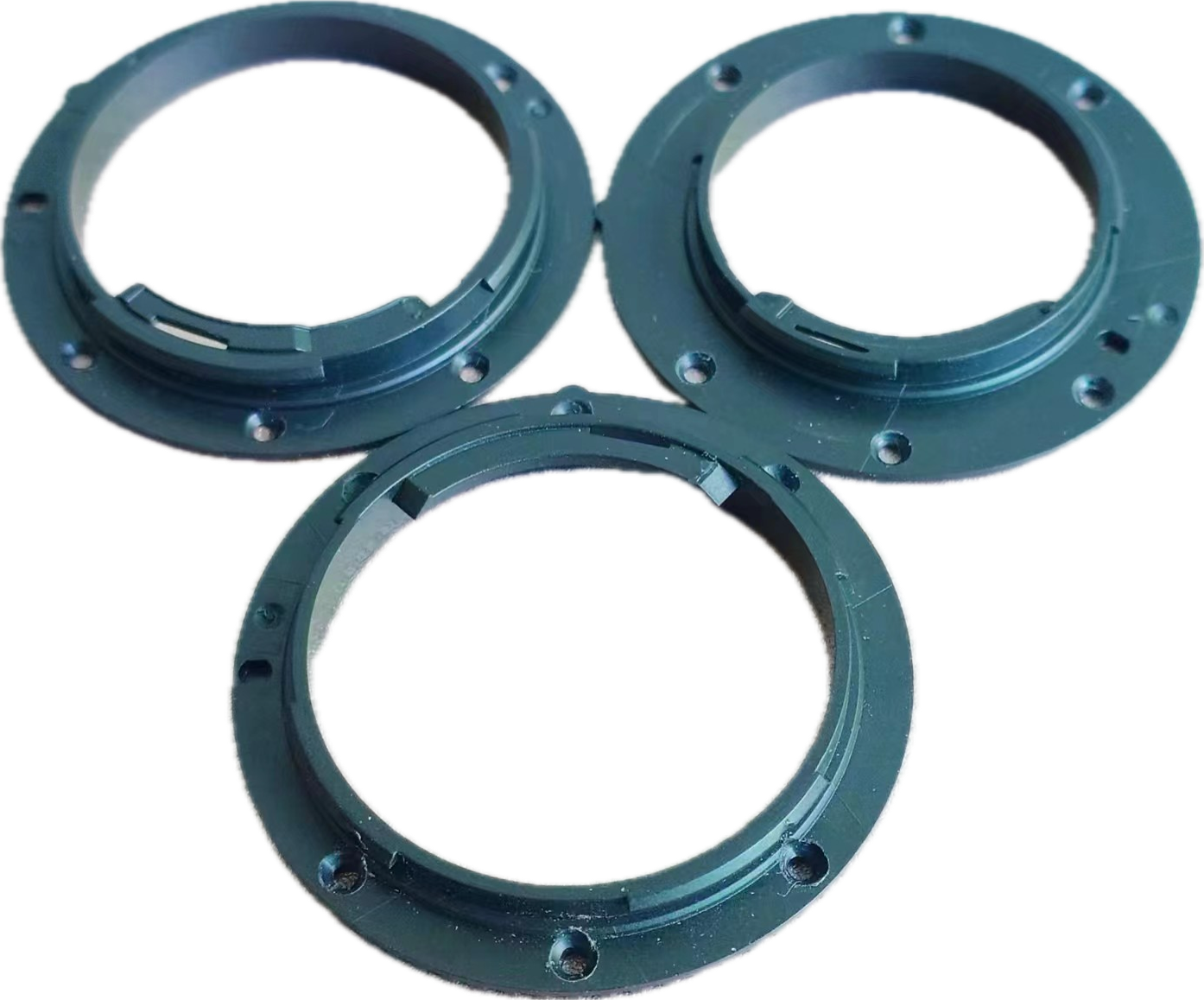

Our lenses can be work with Sony, Canon, Nikon, and Panasonic full-frame mirrorless cameras, just by changing the lens mount at the bottom. We will have extra mounts available if cameras are changed.
The focal length is 35mm, the lens equivalent is F8. The lenses are glass as are the mirrors, lens cover and window.
The attachment has focusing know which goes from 3 feet to infinity.
